SKU: 666561430368
Trim Color:

Trim Color

Veroboard LED-6-S12W-1224V-5CCTWH 6-inch LED Downlight/Ceiling Lights panel lights with Voltage 12-24V AC/DC, Wattage 12W, Brightness 800 Lumens are lightweight with ultra-slim depth. They are manufactured with pure aluminum to ensure better heat dissipation. The panel comes with a LED driver with a power factor of 0.90, thereby reducing the power losses. They have a feature of selecting the light color from five temperatures ranging from 2700K-3000K-3500K to 4000K-5000K.



  • Model No: LED-6-S12W-1224V-5CCTWH
  • Voltage: 12-24V AC/DC
  • Wattage: 12W
  • Frequency: 60Hz
  • Power Factor (PF): 0.9
  • Brightness: 800 Lumens
  • Color Temperature:
    5CCT Selectable Color Temperature
    2700K (Soft White)
    3000K (Warm White)
    3500K (Mid-Warm White)
    4000K (Natural White)
    5000K (Daylight)
  • Rendering Index: CRI>90
  • Available Trim Color(Sold Separately):
    Black Nickel SKU: 666561418083
    Brushed Nickel SKU: 666561418076
    Black SKU: 666561418069
  • Dimmable: No
  • Mounting Plate (Sold Separately):
    VBD-MP-UNV-346  SKU: 666561433796
  • Beam Angle: 120°
  • Rated Life: >50,000 hours
  • Fixture Material: Die-cast Aluminum
  • Fixture Color: White
  • IP Rating: Suitable for Dry, Damp, Wet locations
  • Installation Type: Recessed/ Flush Mount
  • Dimensions: Ø 175 mm (6.88 in) x 25 mm (1.0 in) Depth
  • Cut Size: 158 mm (6-1/4 in)

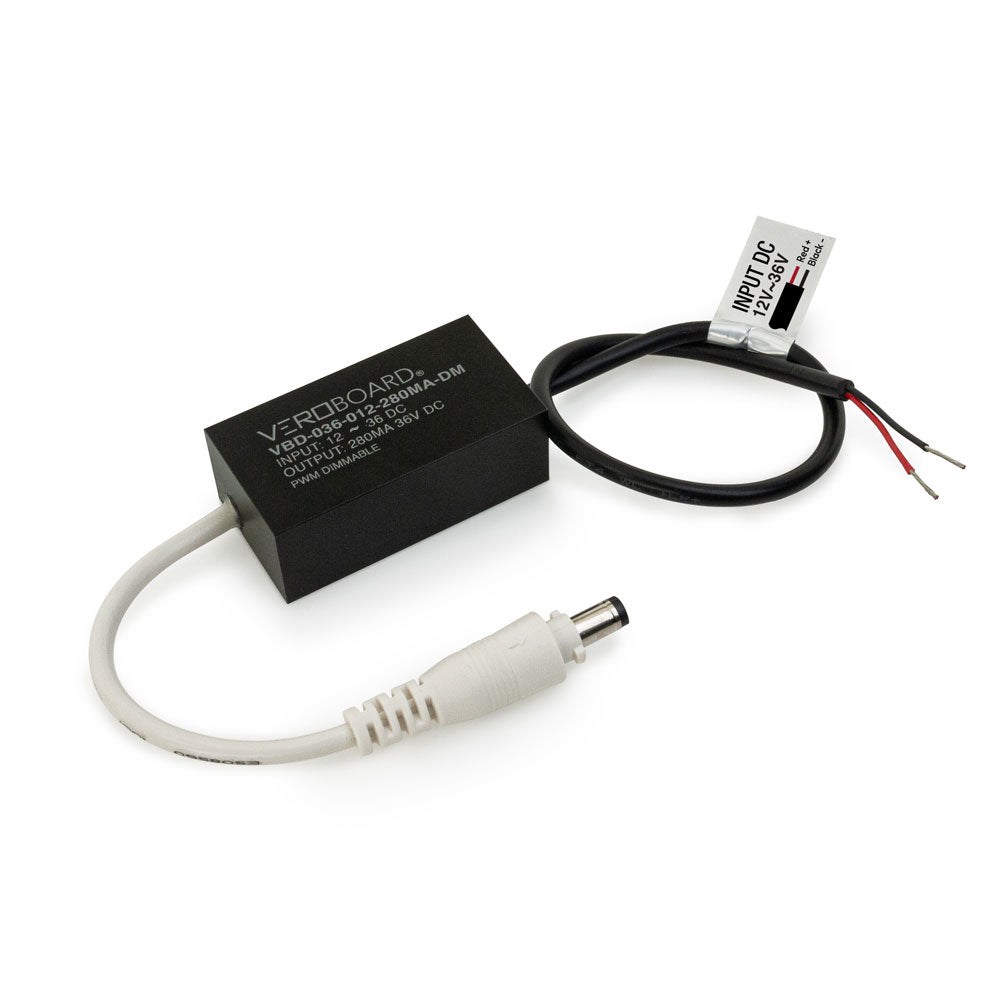

  • LED Driver Dimensions: 67.76 x 25.4 x 25.4mm (2.67 x 1 x 1in)

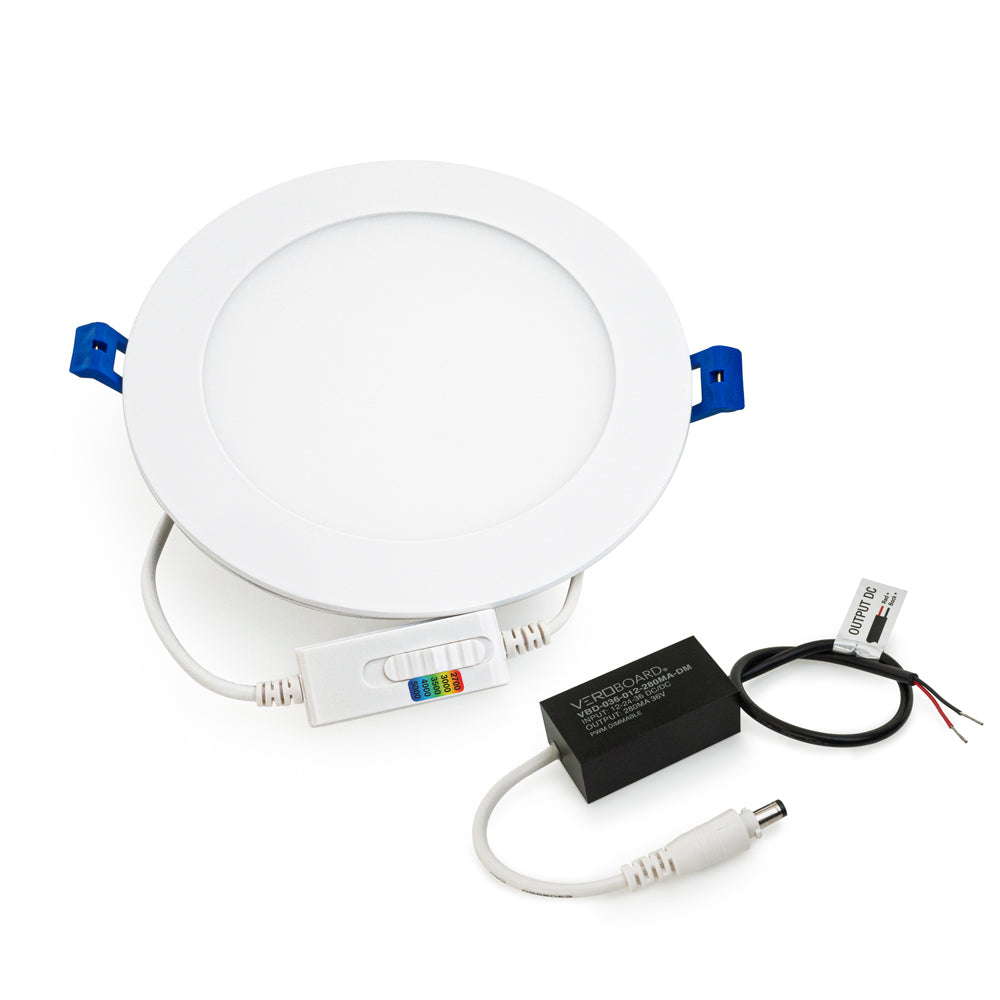

  • Package Content: LED Panel with LED Driver
  • Package Dimensions: 183 x 185 x 60mm (7.2 x 7.3 x 2.3in)
  • Certificates: FCC/ ETL/Energy Star/RoHS
